Motenergy ME1717 PMAC Motor 4kW | EV Conversion Motor
Motenergy ME1717 PMAC Motor 4kW | EV Conversion Motor
Couldn't load pickup availability

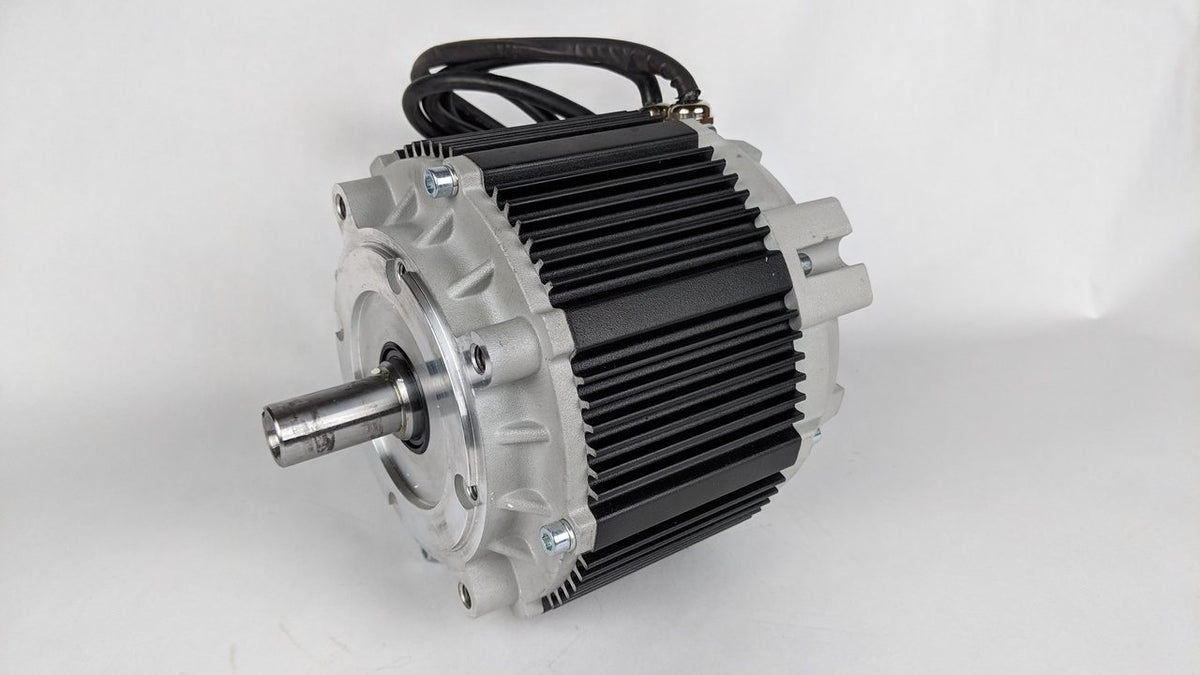

Motenergy ME1717 PMAC Motor 4kW
The ME1717 is a compact 3-phase, Y-connected PMAC/PMSM delivering 92% efficiency across 24–60 VDC packs for crisp torque and quiet operation. Rated 100 A continuous @ 48 V (up to 300 A for 2 min) with a 6000 rpm mechanical limit, it pairs with Sevcon Gen4 controllers and a +5 V Hall sensor for precise commutation. Built with an IP65 case, N38UH 180 °C magnets, NSK 6206/6203 bearings, and low 4.9 mΩ phase-to-phase resistance—ideal for EV conversions, performance karts, light motorcycles, and industrial drives.
Frequently asked questions
Is the Motenergy ME1717 compatible with my equipment?
Confirm system voltage, application, connector/throttle or charger profile, and the part number before ordering. Compare your existing specifications with the listing, and contact us if you need help confirming fit.
What are the warranty and RMA terms?
See our current Shipping & Returns page for warranty, returns, and RMA requirements before purchase.
Shipping calculated at checkout.
Shop related: Electric Motors Sevcongen4 New Lithium Batteries

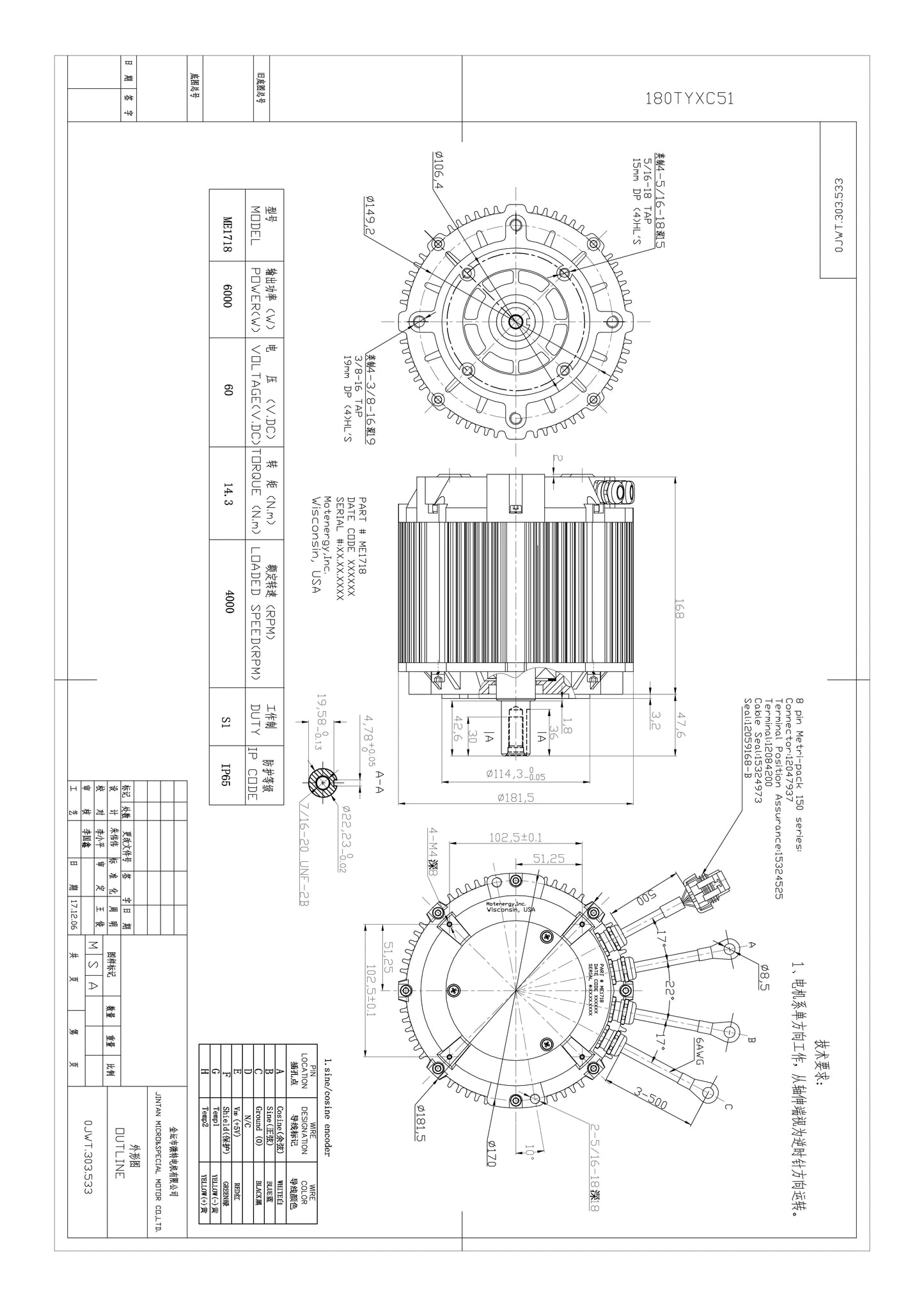

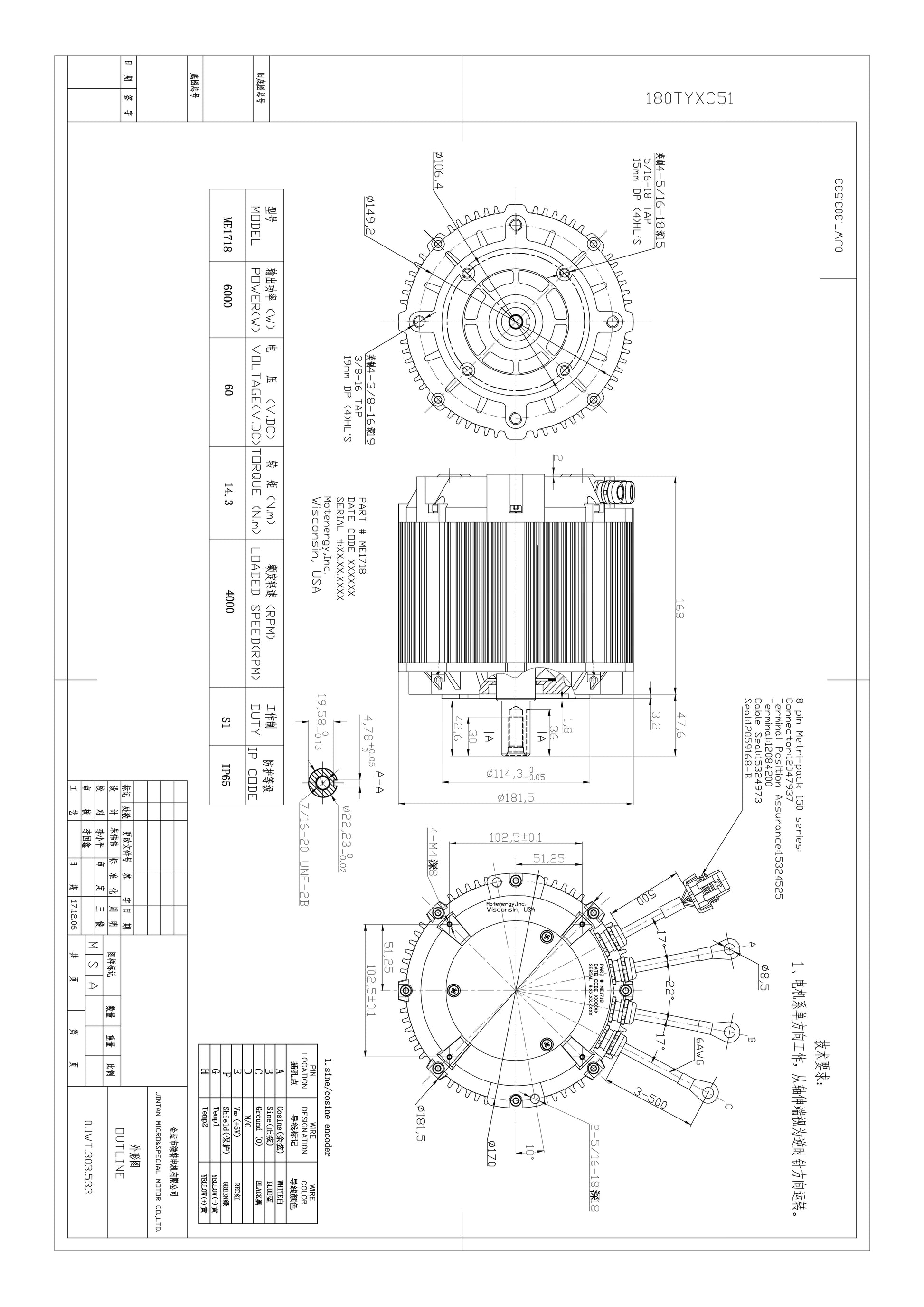

Datasheets: Mechanical sheet | Performance sheet
