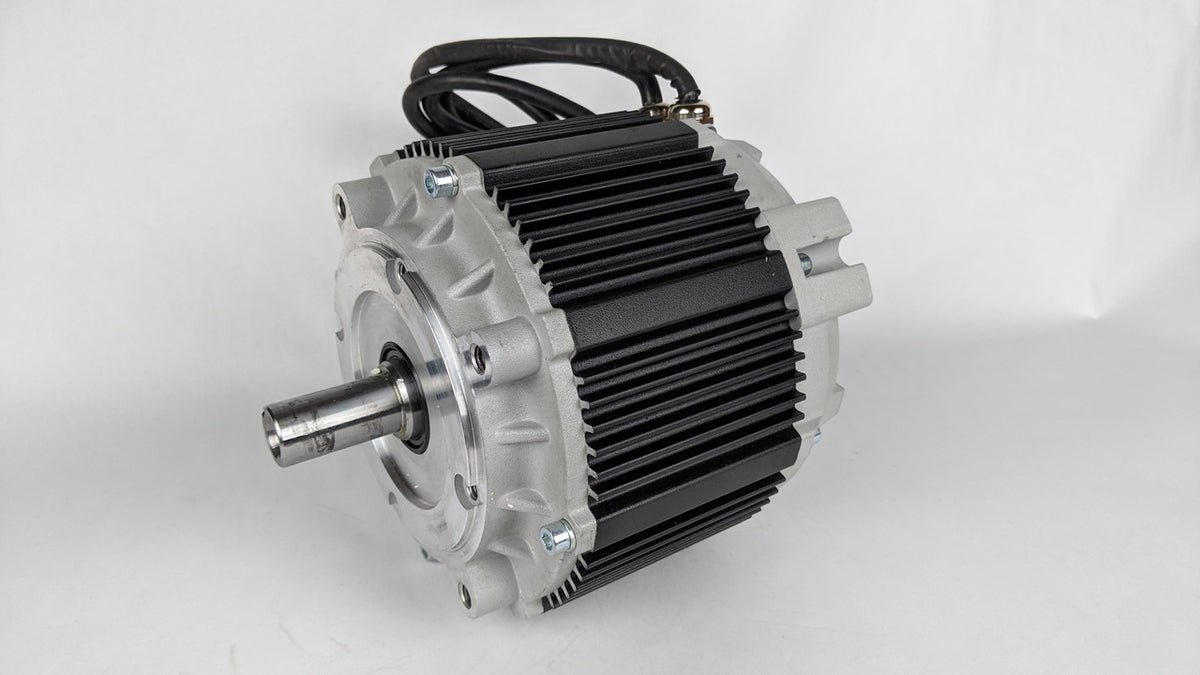

Motenergy ME1716 PMAC Motor 4kW

The ME1716 is a compact 3-phase, Y-connected PMAC/PMSM that delivers 92% efficiency across 24–60 VDC packs for crisp torque, cool running, and quiet operation. Rated 100 A continuous @ 48 VDC (up to 300 A for 2 minutes) with a 6000 rpm mechanical limit, it pairs perfectly with modern controllers and a sine-cosine encoder for ultra-precise control. Built to work hard with an IP65 case, N38UH 180 °C magnets, NSK 6206/6203 bearings, and low 4.9 mΩ phase-to-phase resistance—ideal for EV conversions, performance karts, light motorcycles, and industrial drives.

Key specs: 39–43.5 µH (1 kHz) inductance, 10 poles (5 pole pairs), 11 kg mass, KTY84-130 winding sensor, and 0.00224 kg·m² rotor inertia.

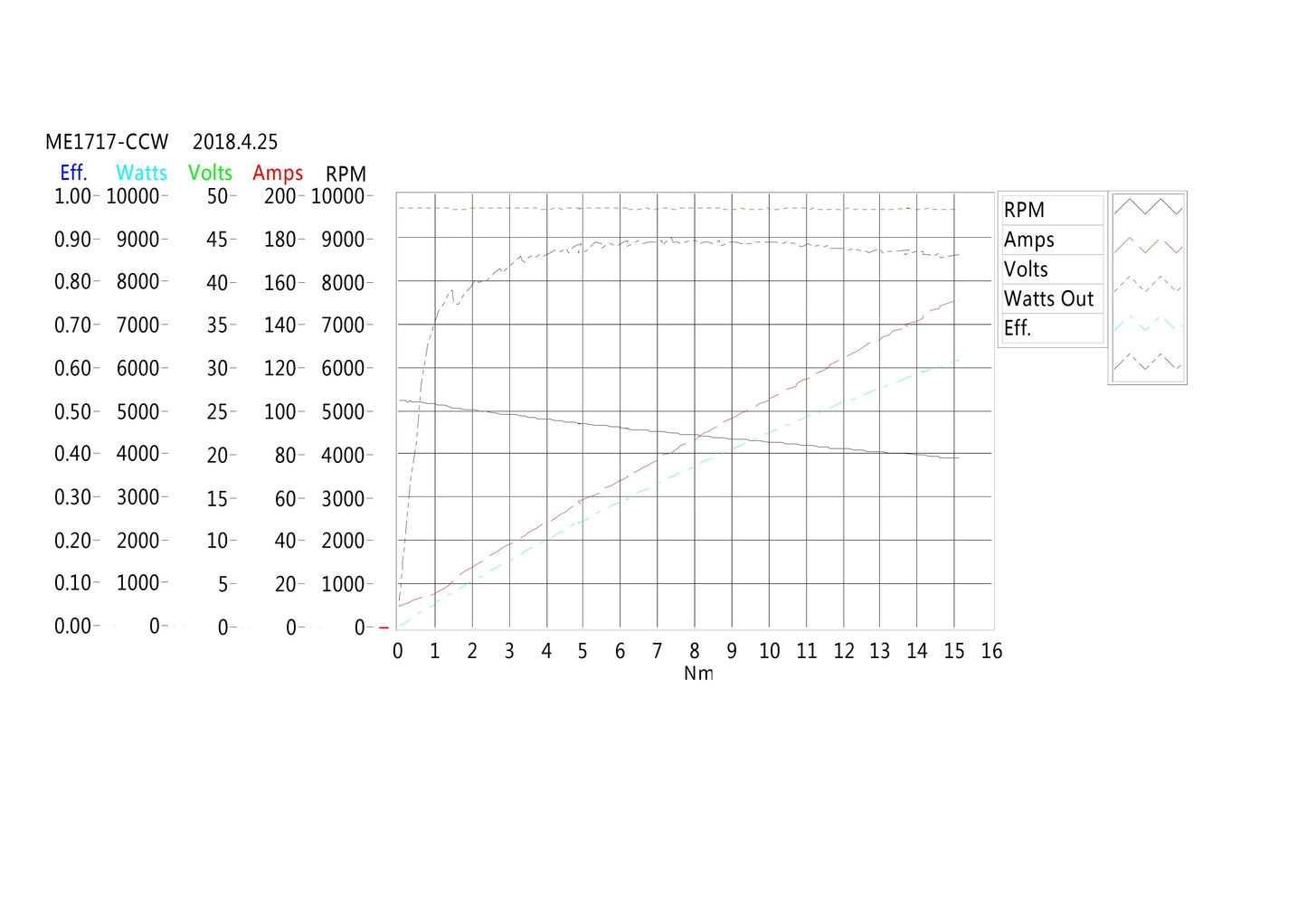

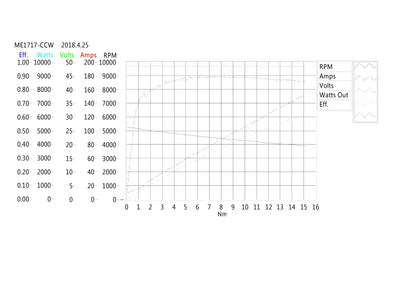

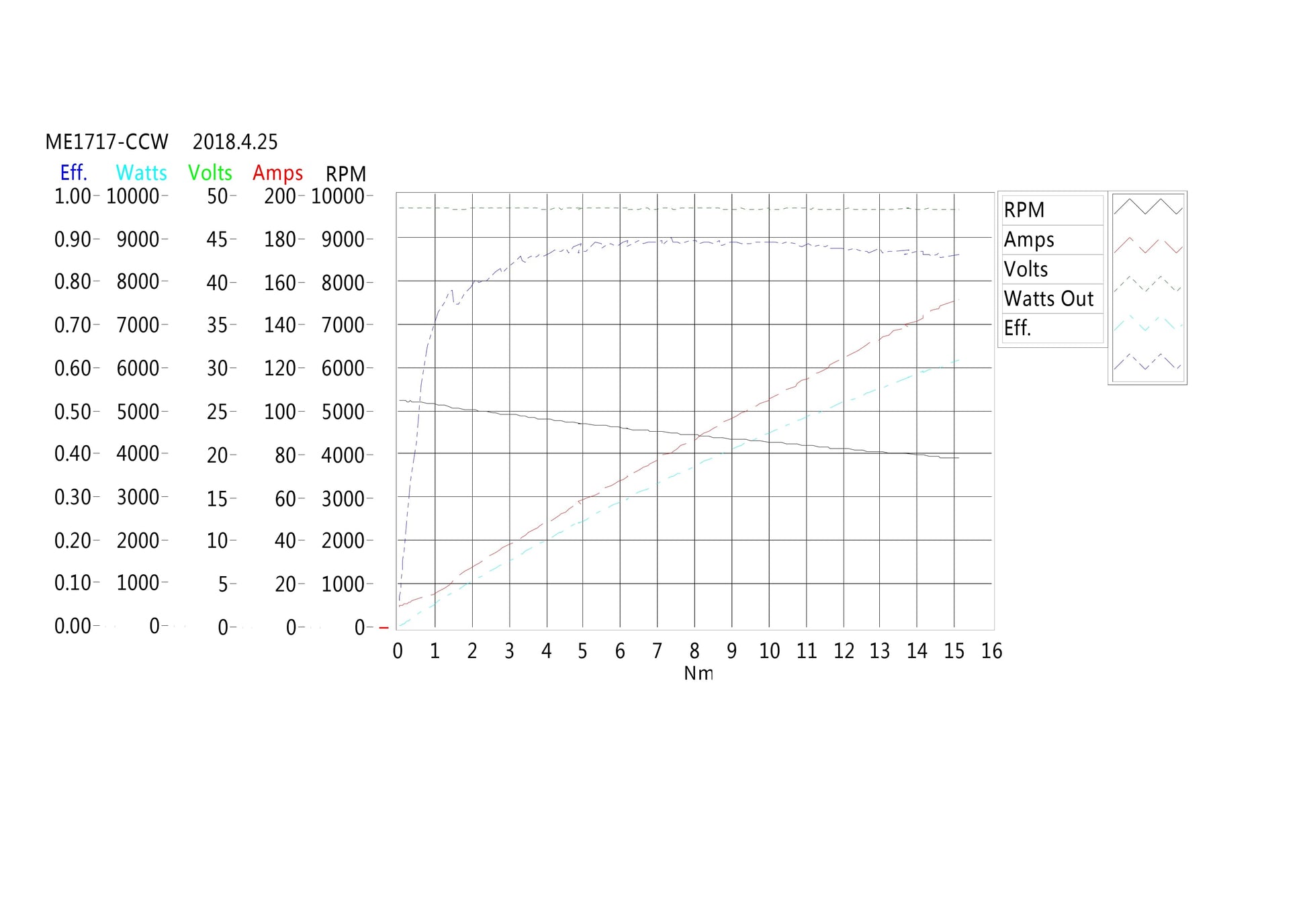

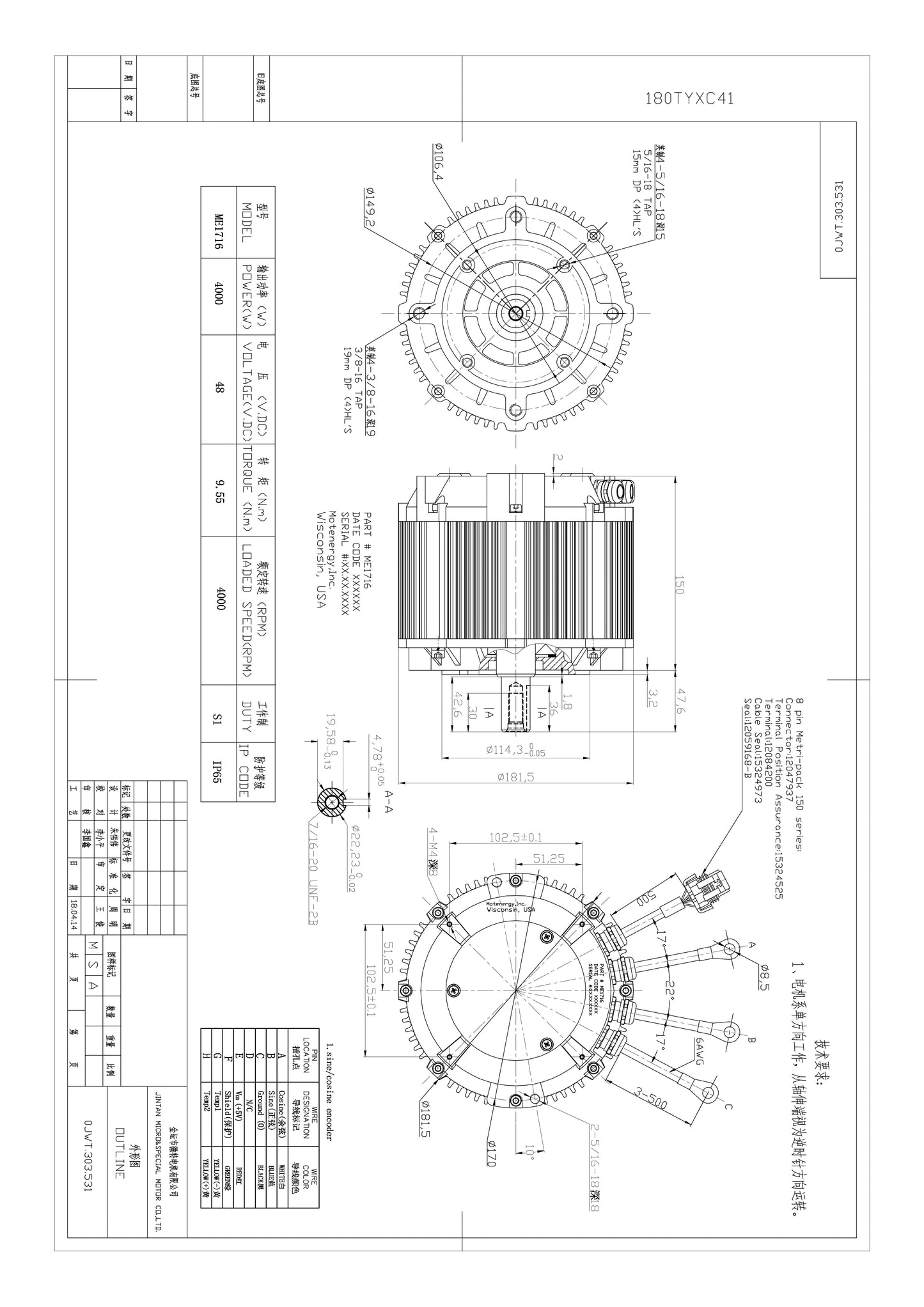

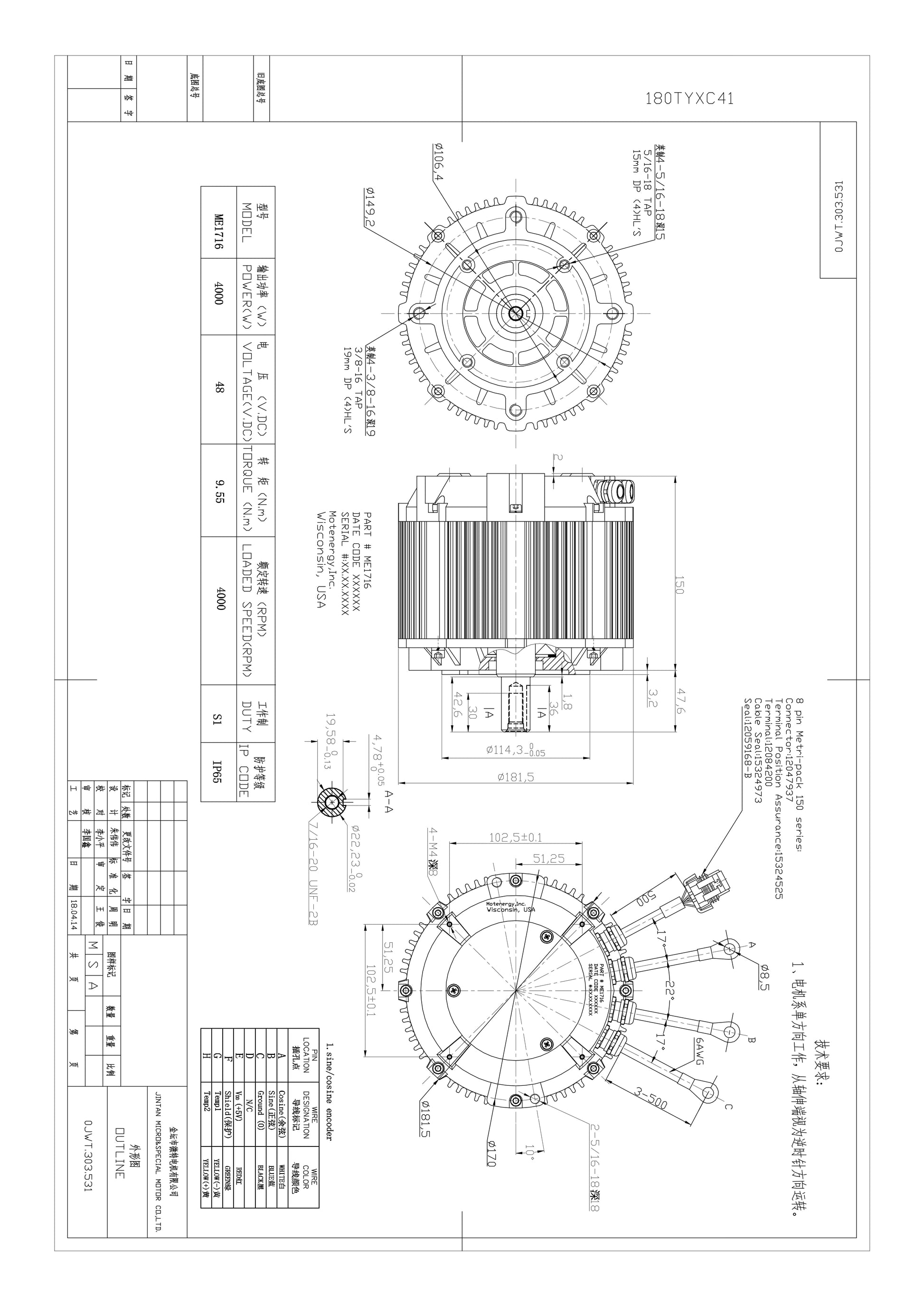

Datasheets: Mechanical sheet | Performance sheet
