Victron Power Inlet stainless steel with cover 32A/250Vac (2p/3w) (Part # SHP303202000)

Victron Power Inlet stainless steel with cover 32A/250Vac (2p/3w)

IMPORTANT — this is a 200–250V AC export model. It is built for European / UK / Australian mains and will not run on standard US 120V household power. Order this only if you are installing on 200–250V AC or exporting outside North America. If you need the US version, contact us before ordering and we will quote the 120V equivalent.

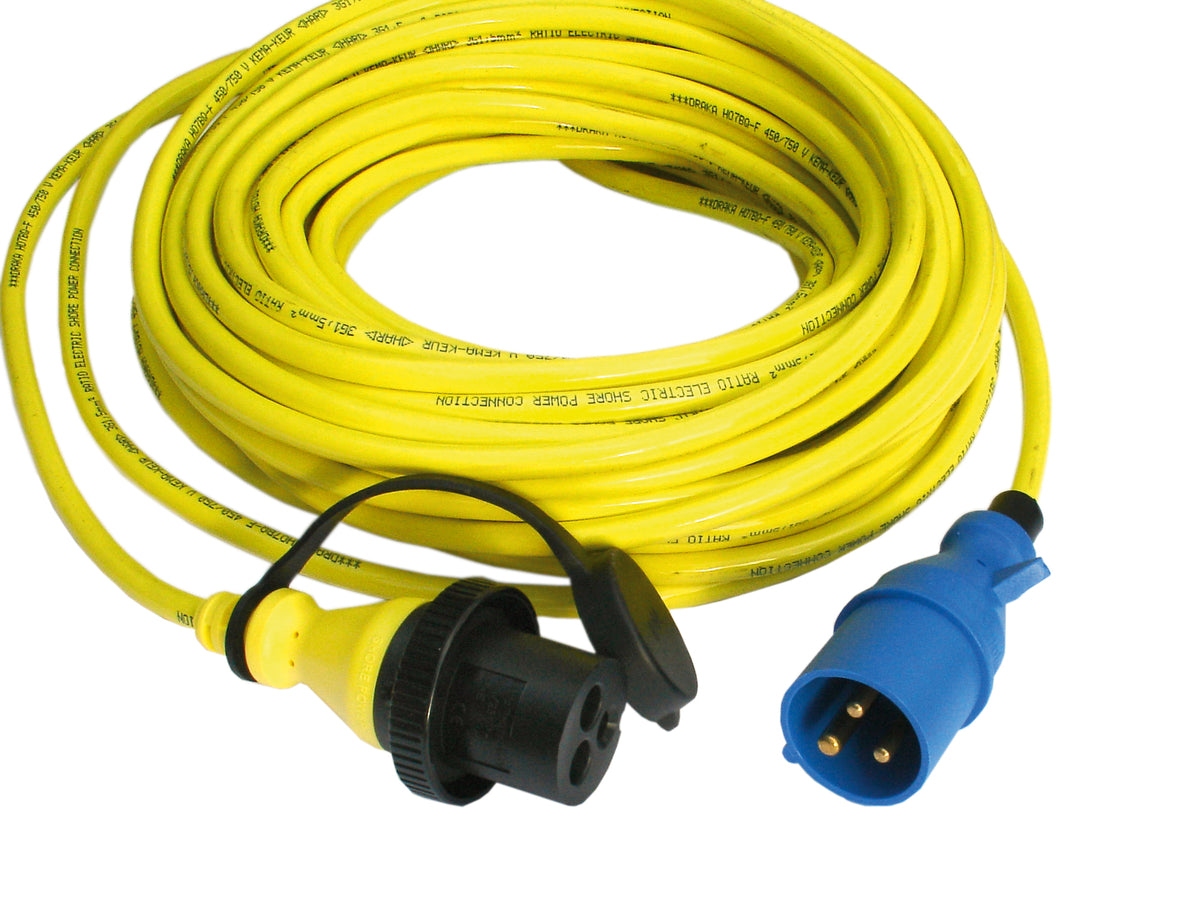

• Waterproof Shore Power Cable and Inlet IP56 • Moulded Plug and Connector • Power indication LED • Protection Cap • Stainless Steel Inlet Available in: 15M 16A 25M 16A 15M 25A 25M 25A

Supplied new by Electric Drive Solutions. Victron equipment integrates with the VictronConnect app and the VRM portal for setup and remote monitoring.

Quick specs

• Brand: Victron Energy
• Part number: SHP303202000
• Mains voltage: 250V
• Protection rating: IP56
• Weight: 0.65 kg
• Ac current rating: 32 A
• Ac voltage rating: 250 V
• Connector: Moulded IEC 60309 3-Pole
• Cover material: Solid cast 316 Stainless Steel
• Pin material: Nickel plated brass
• Plug body: PA6
• Shipping weight: 0.8 kg (1.7 lb)
• Warranty: 60 months
• Country of origin: Netherlands
