Motenergy

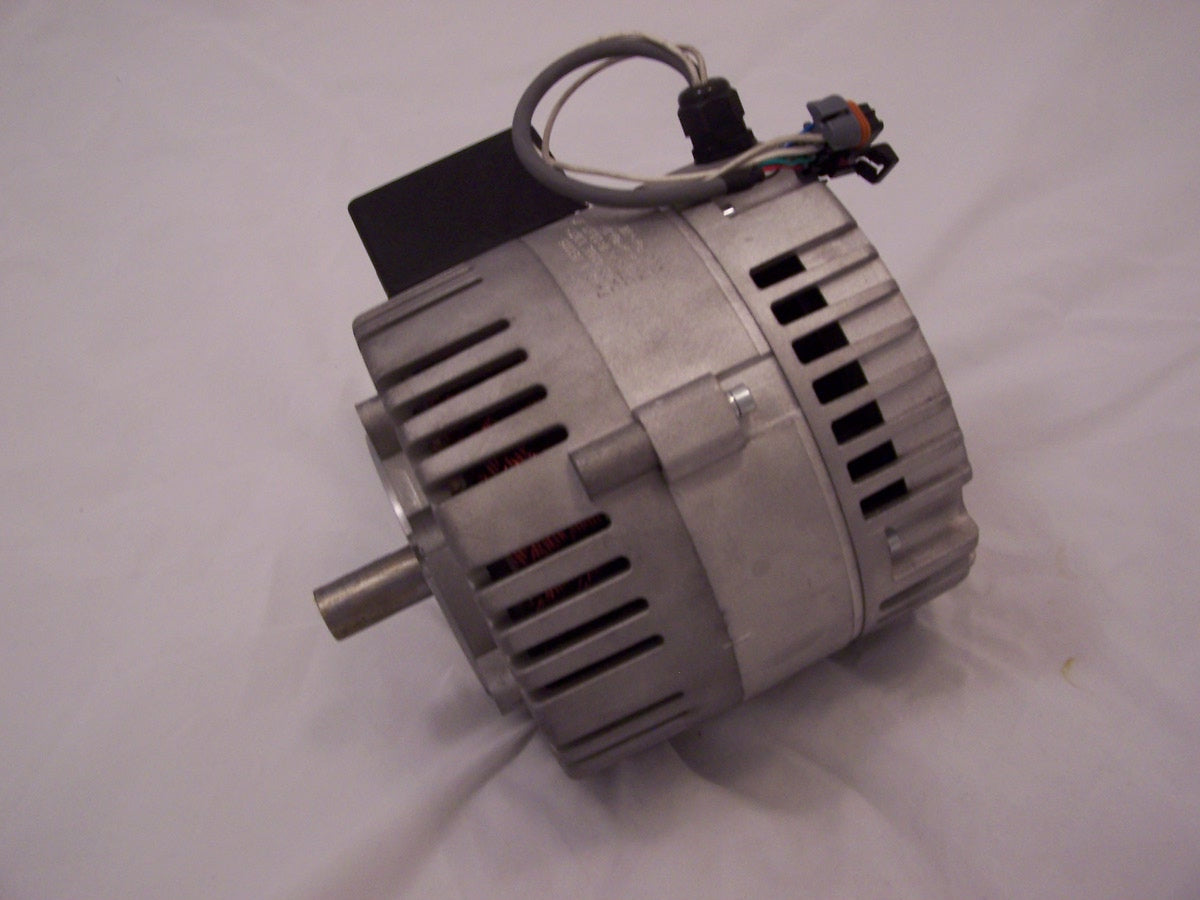

Motenergy ME1917
Motenergy ME1917
Regular price
$1,029.00 USD
Regular price
Sale price
$1,029.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Output Power of 12 KW Continuous, 30 KW Peak (at 96 volts)
Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 24 to 96 VDC. Continuous current of 150 Amps. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap and Sine/Cosine Speed Sensor. It has two stators with a rotor in the center.
1) This is a 4 pole motor (8 magnets). 2) The Phase to Phase winding resistance is 0.013 Ohms. 3) The maximum recommended rotor speed is 5000 RPM. 4) Voltages from 0 to 96 VDC input to the control. 5) Torque constant of 0.15 Nm per Amp 6) The Inductance Phase to Phase is 0.10 Milli-Henry with a 28 turns per phase. 7) Armature Inertia is 45 Kg Cm Squared. 8) Continuous current of 150 Amps. 9) Peak current of 420 Amps AC for 1 minute. 10) Weight of 34 pounds. 11) Peak Stall Torque if 60 ft lb. 12) This is an Open Frame, Fan Cooled motor.
View full details
Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 24 to 96 VDC. Continuous current of 150 Amps. This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap and Sine/Cosine Speed Sensor. It has two stators with a rotor in the center.
1) This is a 4 pole motor (8 magnets). 2) The Phase to Phase winding resistance is 0.013 Ohms. 3) The maximum recommended rotor speed is 5000 RPM. 4) Voltages from 0 to 96 VDC input to the control. 5) Torque constant of 0.15 Nm per Amp 6) The Inductance Phase to Phase is 0.10 Milli-Henry with a 28 turns per phase. 7) Armature Inertia is 45 Kg Cm Squared. 8) Continuous current of 150 Amps. 9) Peak current of 420 Amps AC for 1 minute. 10) Weight of 34 pounds. 11) Peak Stall Torque if 60 ft lb. 12) This is an Open Frame, Fan Cooled motor.
Datasheets: Mechanical sheet | Performance sheet
